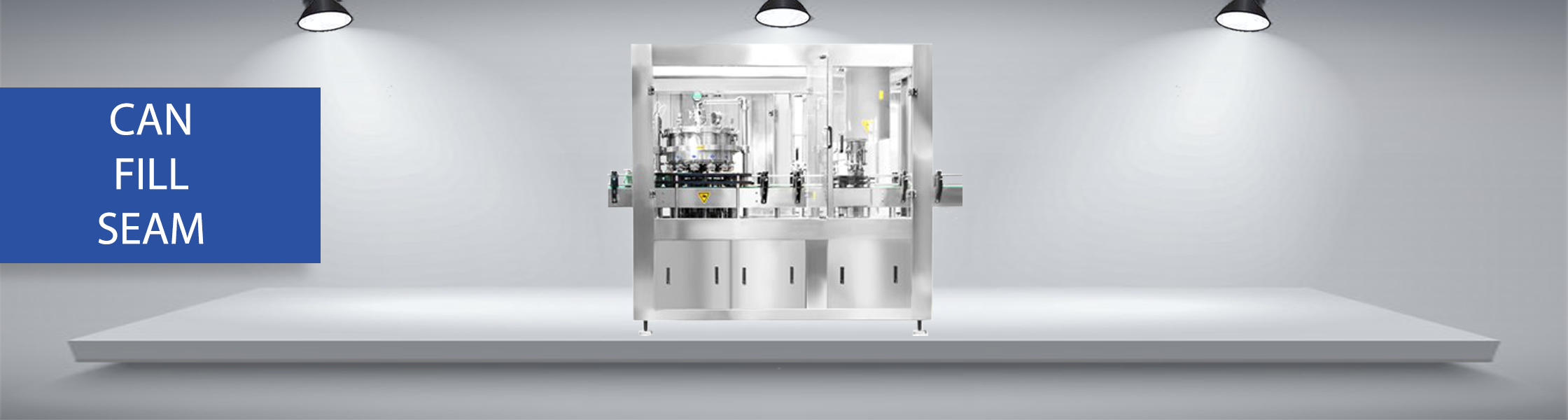

Can Filling and Seaming machines, also known as Can Fill and Seam Blocks normally comprise two integrated packaging machines namely a can filler and a can seamer. Fill and Seam machines can process a wide range of products and can formats and can also be equipped with product recovery and recirculation for hot filling that ensures constant product temperature, even during downtime.

Our automatic Fill and Seam Monoblock counter-pressure canning machines are intelligently designed to provide precision rinsing, filling, and hermetic sealing to cans using double- or triple seal processes.

Our UK Packaging Machinery Ranges

Our Can Filling and Seaming machines cover a wide variety of applications and can be customised according to your production needs. Additional modules that comprise our Filling and Seaming machines are available upon request according to your production requirements.

• Single source all-in-one solution for low- to medium-speed production lines
• User-friendly PLC HMI system offers joint control with No-Can No-Fill/Seal technology
• High filling accuracy is ensured through the volumetric filling valve and inductive flow meter
• Optimal canning of up to 1,200 cans per hour with variable speed control
• Excellent product quality by using low oxygen and CO2 consumption levels
• Easy visibility and access from all sides via transparent opening doors for easy maintenance
• Simplified changeover with automatic height adjustment and quick-change handling parts
• Energy-savings of up to 30% can be achieved through the servo-driven systems
• Reliable filling procedure with hygienic filling valve, automatic centralized lubrication system, and separate gas channels for optimal pressurisation
• Pneumatic Lid Gapper with automatic centering and in-line flushing
• Flexible operation settings make it possible to process various can formats with CIP
• All contact parts are manufactured from SUS 304 stainless steel
• Automatic stop feeding if filling liquid is low or below filling temperatures
• High integration possibilities with other production line machinery
•

Empty cans are individually fed into the filler station where a differential pressure chamber helps to carefully center each can in its optimal position to preserve container pressure.

After pre-flushing has taken place in a separate CO2 chamber with independent pressure adjustment, a pneumatic filling valve automatically lowers onto the cans and an inductive flow meter checks the quality and quantity of inflowing liquid.

The filling valve closes once the specified filling volume has been reached, whereafter the decompression process can begin.

Sensitive beverages that require hot filling utilizes a recirculation system to ensure consistent temperatures as the product is recollected in a special dedicated tank and recirculated into the processing system. In this system, the filler is cleaned and sanitized in a closed loop using false cans assembled under the filling valves and all internal areas in contact with the product are sanitized during the CIP.

Once cans are filled, they are conveyed by a discharge turret and chain towards the can seamer where a revolving lifter plate then raises each can up to the seaming rollers. Here, can lids, also known as ends comprising paper, tin, Aluminium, PET, plastic, or even glass are applied to the can body in three stages, namely compression, first roller operation, and second roller operation to ensure a reliable, airtight seam every time.

After the seaming operation has been completed, a cam-driven knockout pad releases the seamed cans from their respective chucks before they are conveyed down the line for final boxing and dispatching.
